Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension

I'm Online Chat Now

Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension

China Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension supplier
Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension supplier Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension supplier Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension supplier Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension supplier Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension supplier

Large Image :  Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Contact Now
Detailed Product Description
Processing Type: Plastic Thermoforming Machine Condition: New
Product Type: Plastic Cup Voltage: 380v / 220v/50HZ
Power(W): 4kw Dimension(L*W*H): 3500x1000x1600mm
Weight: 1500kgs Warranty: One Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Max Forming Area: 420x160mm
Max Forming Depth: 45mm Application: Birthday Party,barbecue,restaurant
Controller: PLC & Touch Screen Custom Mould: Possible
Type: Plastic Cup Plate Thermoforming Machine Suitable Material: PP PS PET PVC Sheet
Sheet Thickness: 0.3mm To 1.8mm
High Light:

plastic cup cover machine

,

plastic cup molding machine

Product Description

China clear plastic food container making machine

Cutting Freauency
15-45 times/min
Stroke adjustable range
300mm
Max.Forming Depth
45mm
Pressure
0.4-0.7mpa
Overall dimensions
3500X1000X1600mm
Motor power
>=4kw
Weight
1500kgs

Main Features

1. The 12oz Customized plastic cup lid thermoforming machine small is designed and manufactured by the standard of "GMP" in medical industry and "QS" in food industry.
2. This machine can do forming, punching and blanking at the same time to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
4. Easy to replace the mould, application to different specifications of products.
5. Design the mould according to customer's requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.

Application

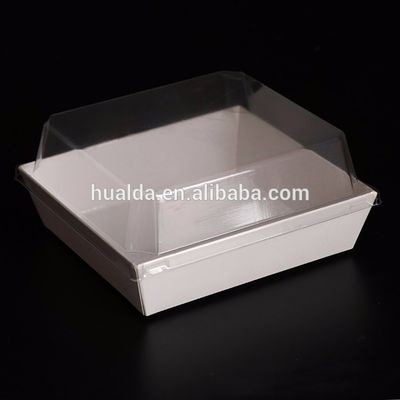

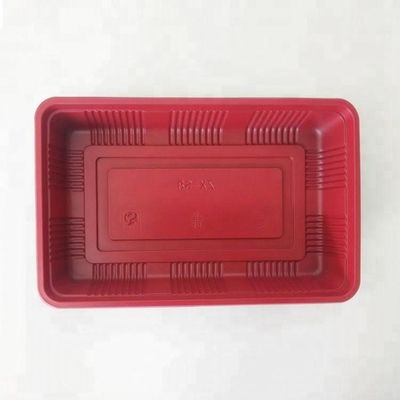

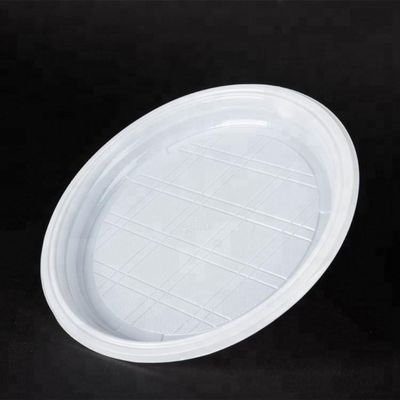

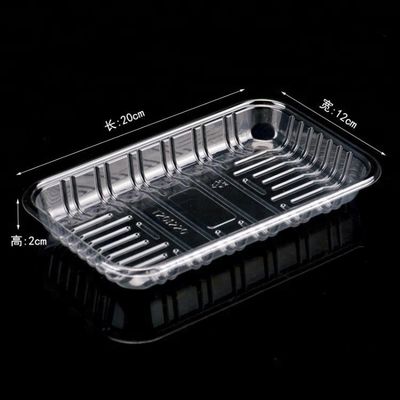

12oz Customized Plastic Cup Lid Thermoforming Machine small Is Mainly Used to Produce Many Different Kinds Of Plastic Lids , Food Containers, Plastic Bowl, Plates , Toys Package, Food Trays , Hardward Trays, Medicine Trays and Etc.The Sheet Material Can Be HIPS, PVC, PET, PS.Custom Mould Is Welcomed.


Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension
Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension

HLD-420L Plastic Lid Machine

91.8% Response Rate

HLD-450W Plastic Plate Making Machine

91.8% Response Rate

HLD-450L Egg Tray Machine

91.8% Response Rate

Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension
Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension
Energy Saving Plastic Cup Forming Machine 3500 X 1000 X 1600 Mm Dimension

HLD-22D Paper Cup Making Machine

ZWT-35 Paper Cup Forming Machine

HLD-C12 Paper Cup Production Line

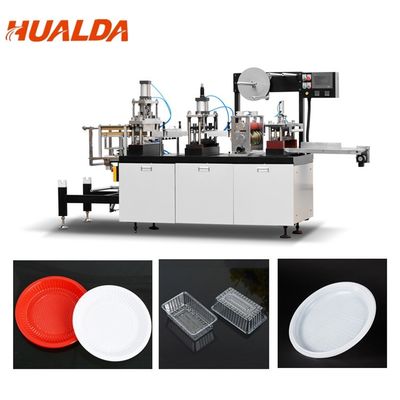

Detailed Images

Our Service

12oz Customized plastic cup lid thermoforming machine small
1 year machine quality warranty
24 hours online technical support, and online presale guide.
Oversea technician service is available, which will ensure you trouble free.
Welcome to contact us whenever you need us.
we are ready to offer you the best quality, best price and best service machinery for you!



RFQ
1. Q: Are you a factory or trading company?
A: We are a factory .
2. Q: How does your factory do regarding quality control?
A: Quality is our Culture , We have passed CE certifate and we have a special QC department in charge of products' quality.
3. Q: How long is the warranty period ?
A: one year warranty .
4. Q: What's the main market of your company?
A: We have exported machines to Canada, Spain, Brazil, Russia, Korea, Vietnam, Philippines, Thailand, Indonesia, U.A.E, Algeria, Syria, Pakistan, Iran, Saudi Arabia, Africa, South America and etc
5. Q: How much production capacity of your company one year?
A: This depends on your needs.
6. Q: Can we see the machine operation in your factory?
A: Yes , We can arrange to run the machines when you come to visit our factory.
7. Q: How to reach our factory?
A: Wenzhou Airport to our factory , about 50mins ; Ruian Train Station to our factory , about 15mins.
8. Q: How about After-sale service?
A: Engineers available to service machinery overseas and training how to install & run the machine.
