| Processing Type: | Plastic Thermoforming Machine | Condition: | New |
|---|---|---|---|
| Product Type: | Plastic Cup | Voltage: | 380v |
| Dimension(L*W*H): | 2500*1000*1650 | Weight: | 1000kg |
| Warranty: | One Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Sheet Material: | PET PS PVC | Sheet Thickness: | 0.1mm To 1mm |
| Sheet Feeding: | By Motor Power | Max Forming Area: | 450x160mm |
| Max Forming Depth: | 45mm | Cutting Speed: | 15 To 45times/min |
| Highlight: | plastic container making machine,cup cover machine |
||

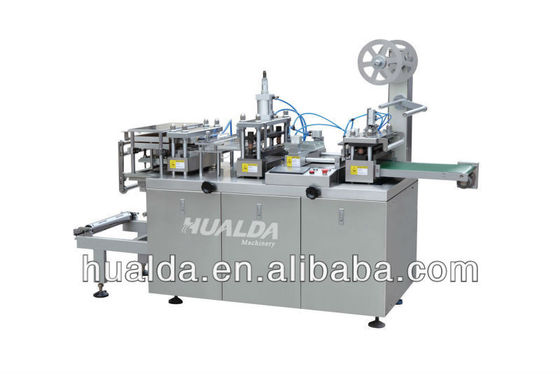

Automatic Cold Drinks Lids Forming Machine
Function and Feature:
1. The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
2. This machine can do forming, punching and blanking at the same time to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
4. Easy to replace the mould, application to different specifications of products.
5. Design the mould according to customer’s requirements.
6. Applicable projects: the material of HIPS, PVC, PET, PS.
Main Technical Parameters:
Cutting Frequency | 15--45times/mins |
Power | 380v/220v/50HZ |
Stroke adjustable range | 50--160mm |
Max.Forming Depth | 30mm(can be customized 45-60mm) |
Max.Forming Area | 400×150mm |
Capacity | |
Motor Power | 1.5kw |
Consumption | >0.2m3/min |
Pressure | 0.4--0.7mpa |
Overall Dimensions | 2500×1000×1600mm |
Weight | 1200kg |
