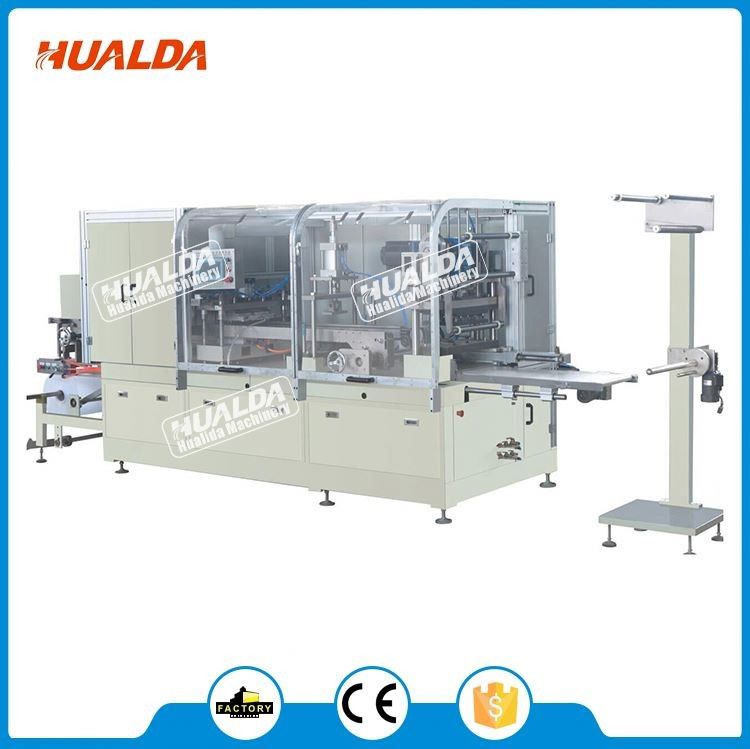

Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine

I'm Online Chat Now

Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine

China Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine  supplier
Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine  supplier Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine  supplier Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine  supplier Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine  supplier Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine  supplier

Large Image :  Thick Plastic Thermoforming Machine , 4000 Kg Weight Lid Forming Machine

Product Details:

Place of Origin: Zhejiang, China (Mainland)
Brand Name: HUALDA
Certification: CE
Model Number: HLD-470B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Contact Now
Detailed Product Description
Processing Type: Plastic Thermoforming Machine Condition: New
Product Type: Plastic Lid Voltage: 380V 50HZ(220V 60HZ)
Power(W): 22KW Dimension(L*W*H): 5000*1600*2100mm
Weight: 4000KG Warranty: One Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas Max. Cutting Speed: 10-35 Times/min
Max. Forming Length: 260mm Max. Forming Width: 470mm
Max. Forming Depth: 70mm Available Material: PP/PS/PET/PVC/PLA
Material Thickness: 0.1mm-1.5mm Heating Power: 16KW
Motor Power: 6KW Pressure Of Water Supply: 0.2MPa
Exhaust Volume: >=0.6m3/min
High Light:

thermoforming cup making machine

,

disposable cup machine

Factory directly sale super quality thick plastic thermoforming machines lid cover forming machine



Brief Introduction:

HLD-470 series automatic thermoforming machine,as the first domestic new-type machine,is researched and developed by our scientific researcher according to the market demands and our past production technology.

This machine is a multi station automatic machine, which solve the problems of food packaging hygienc standards. It not only solves a lot of problems effectively in the production of PP, PS, PET, PVC and PLA

plastic products, such as large capital investment, large labor input, complicated production process, lower hygienic security, etc, but also has extensive usage.

It can be used in the production of PP, PS, PET, PVC, PLA plastic products using in metals, food, pharmaceutical, etc. The machine enjoys beautiful appearance and good price. It is popular with the customers at home and abroad!



Technical Parameter:



Name HLD-470B
Max. Cutting Speed 10-35 times/min
Max. Forming Length 260mm
Max. Forming Width 470mm
Max. Forming Depth 70mm
Available Material PP/PS/PET/PVC/PLA
Material Thickness 0.1mm-1.5mm
Heating Power 16KW
Motor Power 6KW
Power and Total Power 380V 50HZ(220V 60HZ)22KW Three-phase and four-wire
Pressure of Water Supply 0.2MPa
Water Consumption 0.3m3/h (Tap water or Circulating cooling water)
Exhaust Volume ≥0.6m3/min
Air Pressure 0.6-0.8MPa
Machine Install Size 5000×1600×2100mm
Packing Size 5200×1800×2300mm
Max. Width of Material 510mm
Weight 4000KG






Packaging&Shipping of carton box making machine prices

Standard export wooden box, within 45 days after the receipt of advanced payment



Q:I have never use this kind of packaging machie,how to control?

1.Each machine we are accompanied by the relevant operating instructions.

2.Our engineers can operate through a video demonstration.

3.We can send engineers to the scene teaching.



Q:What makes us outstanding from peers?

1.A most strict QC standard in the industry is applied.

2.CE and IOS certificate.

3.High productivity with advanced machines.

4.A wide selection of styles, and product types.
