Product Details:
Payment & Shipping Terms:
|
| Processing Type: | Plastic Thermoforming Machine | Condition: | New |
|---|---|---|---|
| Product Type: | Plastic Cup | Voltage: | 380V |
| Power(W): | 67kw | Dimension(L*W*H): | 3500*1800*2500mm |
| Weight: | 4.8t | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Forming Width: | 400-630mm |
| Forming Thickness: | 0.25-2.5mm | Stretching Length: | 160mm |
| Max.height Of Cup: | 125mm | Max. Fitting Area: | 620X300mm |
| Sheet Feeding By Servo Motor: | 2.2KW | Oil Pump Motor: | 7.5kw |
| Heating System: | 55kW | ||
| High Light: | plastic cup cover machine,plastic cup making machine |
||
1:Functions:

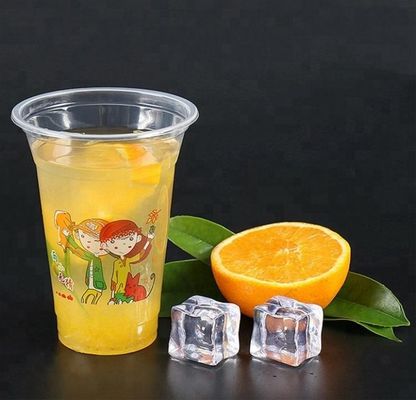

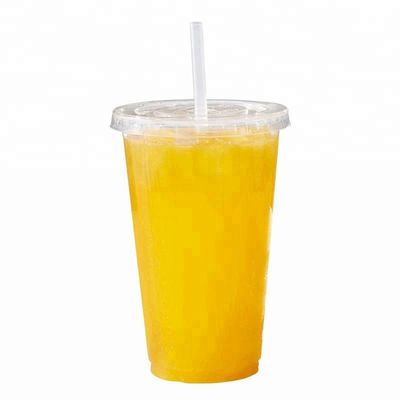

1).Making round cups, and which can works all by itself. it
combines the material feeding heating
forming blowing cutting transporting into one process.
2).Making square cups and other shape cups which can be cutting with page. It combines the material
feeding, heating blowing page cutting and transporting into one process.
2:Remark:
1).this machine adopts servo motor feeding
2).PLC control perform component
3).Sheet heating, hydraulic increase the speed, mechanism mould locking,stretch,cut ,huff forming,
products delivery auto-complete.
4).Heating is controlled by temperature controller,it divide into up 8 heating area ,and down 8 heating area .
Main Equipment:

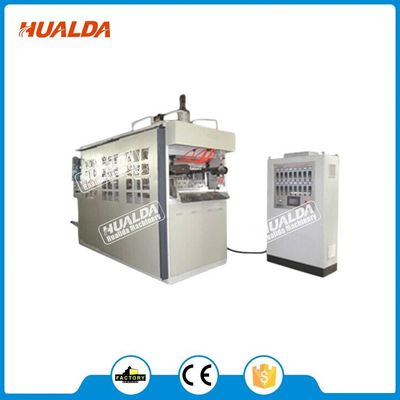

Model | HLD-660H(two pillar) | |
Forming Width | 400-630mm | |
Forming Thickness | 0.25-2.5mm | |
Stretching Length | 160mm | |

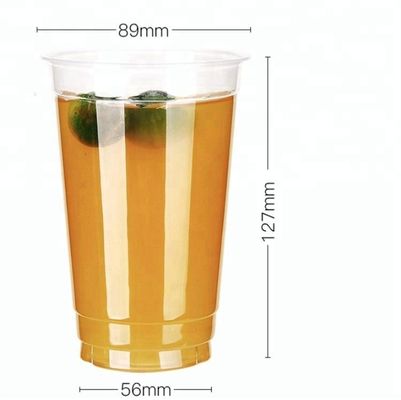

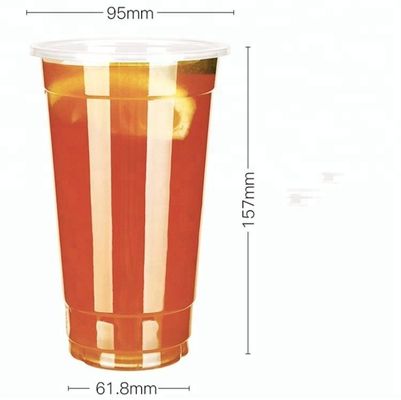

Max.height of cup | 125mm(if the height more than 125mm pls choose another model machine | |
Route Length Adjust | 100-400mm | |
Max. Fitting Area | 620X300mm² | |
Electricity Consumption
| Sheet Feeding by servo Motor | 2.2KW |
Oil Pump Motor | 7.5kw | |
Heating System | 55kW | |
Heating System | 650w white heating Brick 104 pcs | |
Temp. Control | 16 Groups Temp. Control and PLC | |
