Good Quality Paper Lid Machine,Paper Cup Lid Making Machine,Paper Cap Forming Machine for paper cup

Large Image : Good Quality Paper Lid Machine,Paper Cup Lid Making Machine,Paper Cap Forming Machine for paper cup

Product Details:

Place of Origin:	China
Certification:	CE,SGS
Model Number:	JGZ-60

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 28000
Packaging Details:	standard wooden case
Delivery Time:	60 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Voltage:	380v/220v (customized)	Condition:	New
Dimension:	240017001900mm	Weight:	2800kg
Speed:	35 Pcs/min	Port:	Ningbo/Shanghai
Warranty:	1 Year

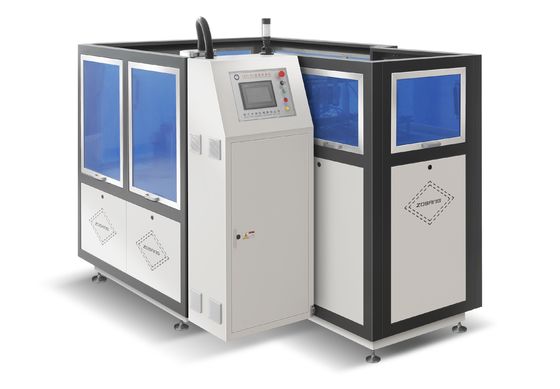

JGZ-60 Paper Lid Forming Machine

1. Main features:

A. The body is made of high quality material with high strength.

B. The machine with smooth operation,forming stable,low noise.

C. The safety system is reliable.

D. With Centralized(decentralized)lubrication system(optional).

E. Double cover can be placed directly on the machine.

(The second release device can be selected)

2.Technical Specification:

Model	JGZ-60	JGZ-60D
Paper Cup Dia.	65~125mm	65~125mm
Raw Material	Single PE coated	Single/double PE coated
Paper weight	280~450gsm	250~380gsm
Max. Rated Productivity	40 pcs/min	50 pcs/min
Power	6.5kw	7kw
Power Souce	380v,50hz,3ph (customized)	380v,50hz,3ph (customized)
Machine weight	2800kg	3000kg
Consumption	0.4mpa,0.12m³/min	0.4mpa,0.12m³/min
Overall Dimension	240017001900mm	240017001900mm

The company reserves the right to change the specification withour notice.

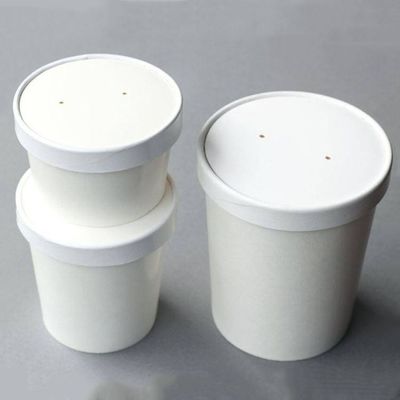

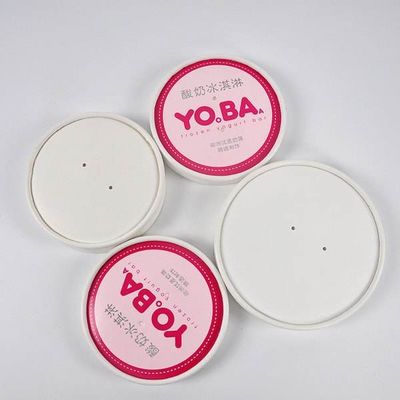

3. Sample:
